SW-COMMUTATOR M & P epoxy mica sheets

Product information

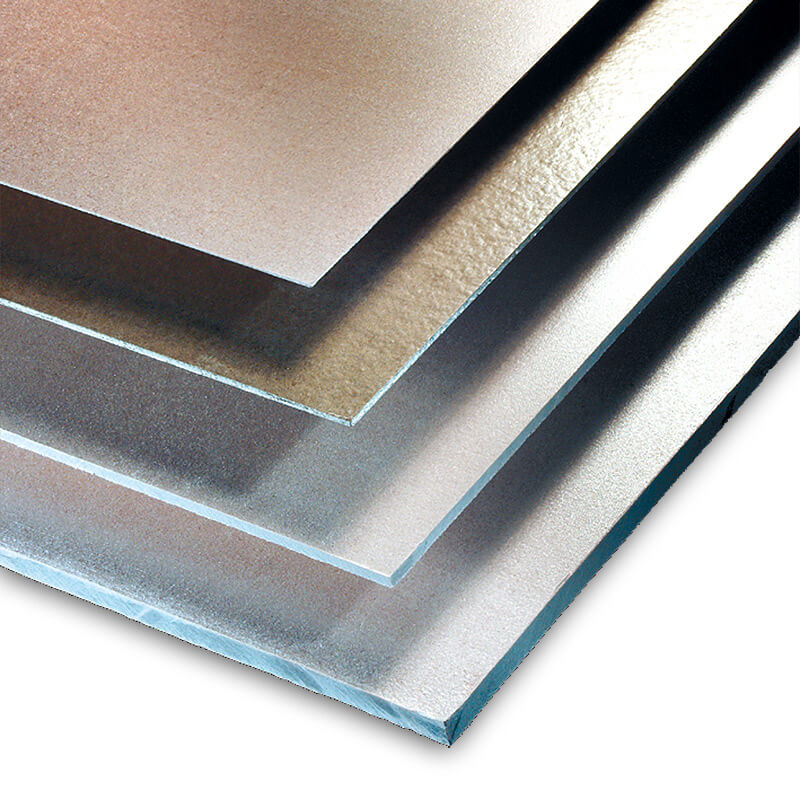

SW-COMMUTATOR M & P sheets are hard, dense mica plates with good electrical and thermal properties and mechanical strength.

SW-COMMUTATOR M & P sheets consist of minimum 90% Muscovite alternatively Phlogopite impregnated with a specially developed epoxy resin.

Fields of application

SW-COMMUTATOR M & P sheets are used within a wide range of small and medium size commutators for all kind of household applications, industrial equipment and power tools.

Technical data

Thickness  0.2 - 1.9 mm
Dimensions 1,000 mm width, max. 1,200 mm length
Compressibility   Muscovite Phlogopite
  Ce-elastic ≤ 2.5 %  ≤ 2.0 %
  Cp-plastic ≤ 2.5 %  ≤ 2.0 %
Resistance to exudation and displacement   200 °C 200 °C
